System Selection Tools

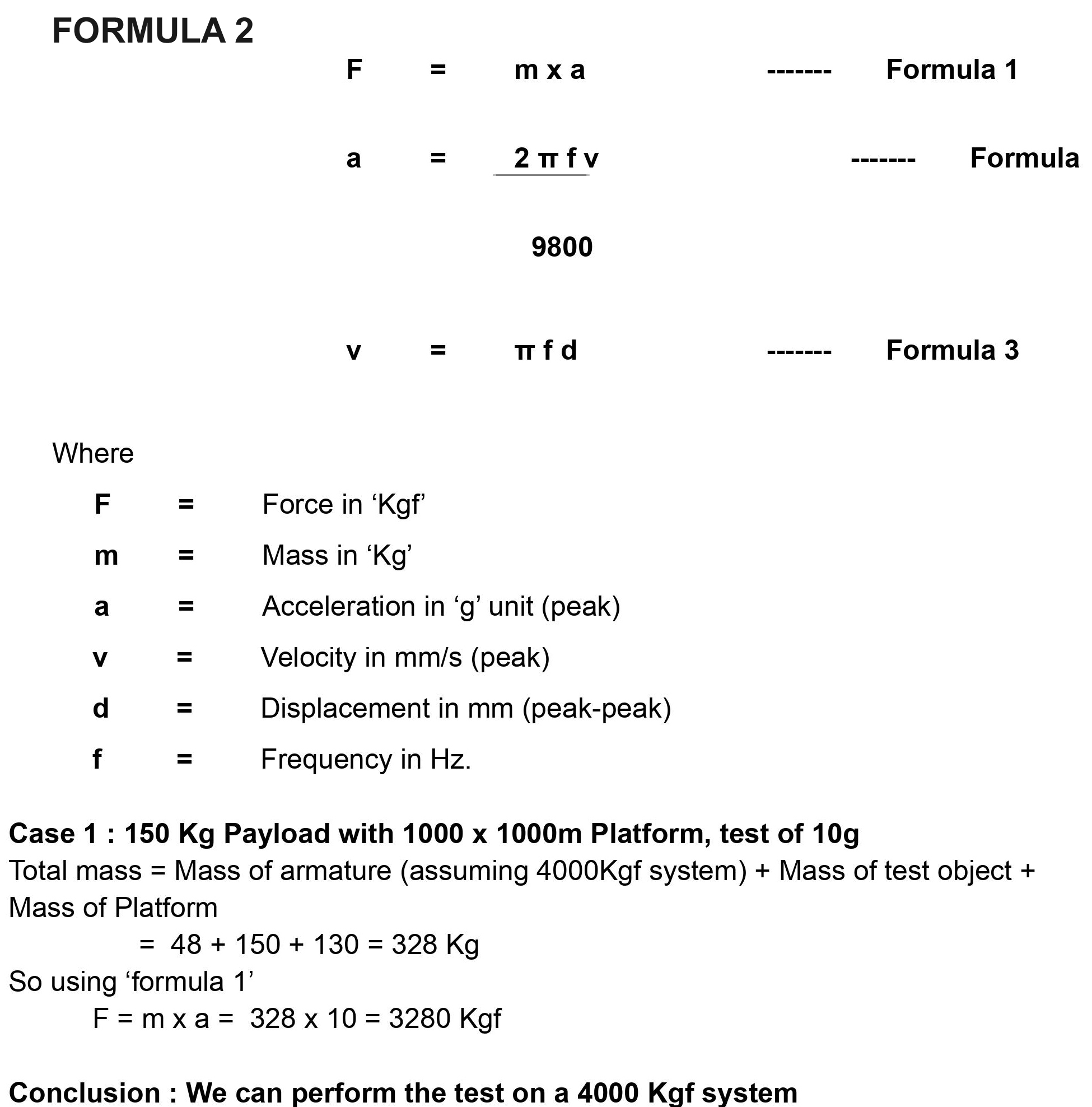

F
= m x a
Formula 1
a
= 2 f v
Formula 2
v
= f d
Formula 3
Where
F = Force in ‘Kgf’
m = Mass in ‘Kg’
a = Acceleration in ‘g’ unit (peak)
v = Velocity in mm/s (peak)
d = Displacement in mm (peak-peak)
f = Frequency in Hz.
Case 1 :
150 Kg Payload with 1000 x 1000m Platform, test of 10g
Total mass =
Mass of armature (assuming 4000Kgf system) + Mass of test object + Mass of Platform = 50 + 150 + 150 = 350 Kg
So using ‘formula 1’
F = m x a = 350 x 10 = 3500 Kgf
Conclusion :
We can perform the test on a 4000 Kgf system
